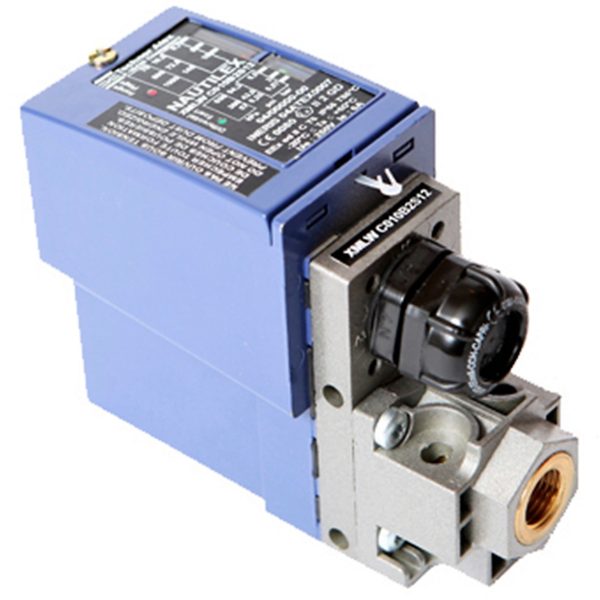

Explosion proof (ATEX) Ex d e IIC Pressure switches XML
The XML range of explosion proof pressure switches is designed for applications where it is important to control fluids in your installation from 0.1 to 500 bars.
With an extensive range for pressures and fluids, XMLWC pressure switches give you control in hazardous areas.
These tough, high quality, flameproof / explosion proof pressure switches are designed and built in France for use in explosive atmospheres / ATEX hazardous areas around the world.
Ex marking
II 2 GD
Ex d e IIC T6 Gb
Ex tb IIIC T85°C Db
Applications
Hazardous areas – ATEX
Product Downloads
- Material: Zamak
- IP rating: IP66
- Operating temperature: -20°C to +60°C
- Approvals: INERIS04ATEX0007
- Ex-code :
- II 2 GD Ex d e IIC T6 Gb
- Ex tb IIIC T85°C Db Contact 6 A - 230V
- Rated thermal current: 6 A
- Insulation voltage: 250 V
- Contact block: Single-pole snap action NO+NC
- Electrical connection: Screw terminal block, cable entry ISO M20 for cable Ø 8 to 13 mm
- Short circuit protection: By fuse 6 A gG (gl) to be installed outside the Ex area
- Hydraulic connection: 1/4” gas female - Other on request
