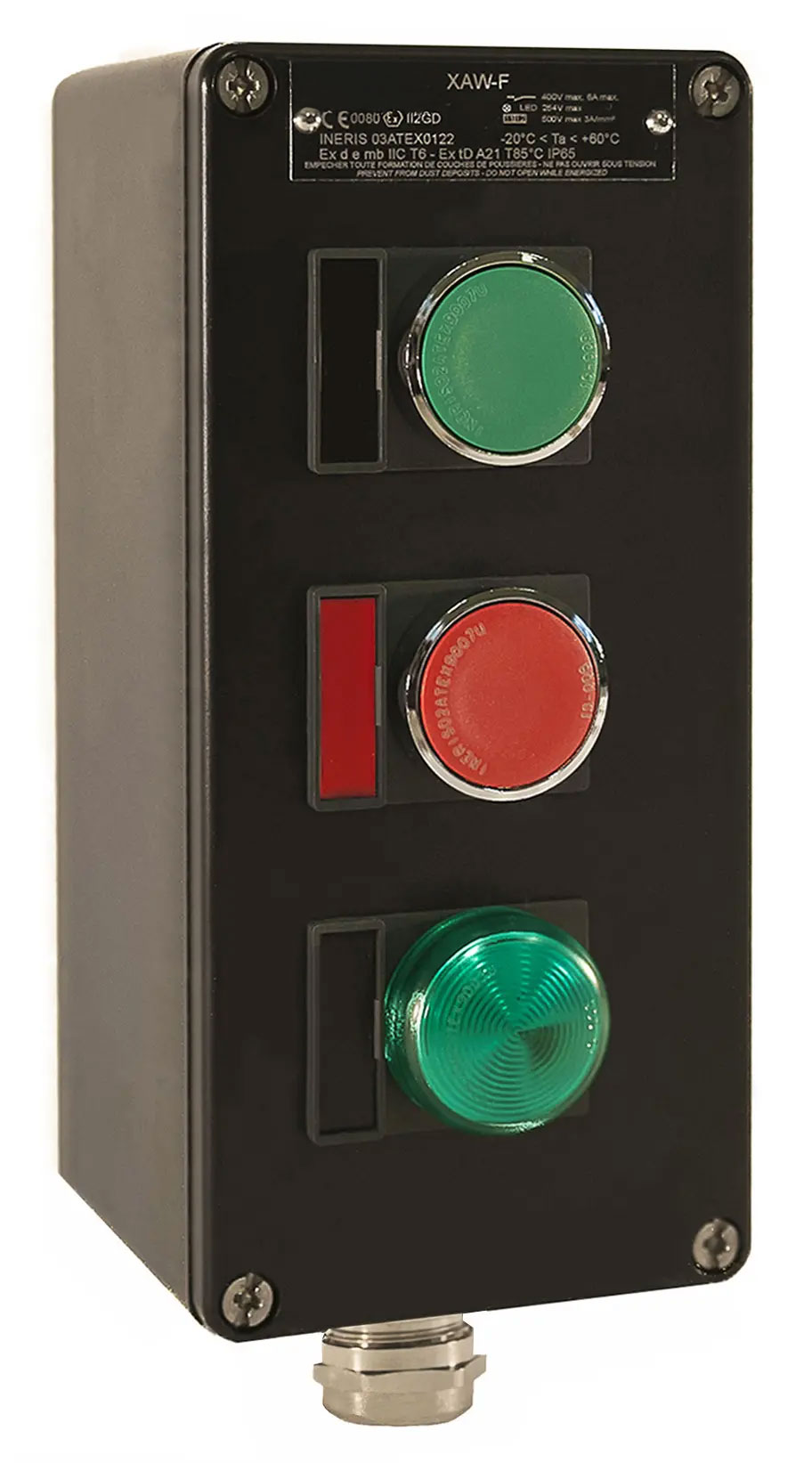

Explosion proof (ATEX) Ex e control stations XAWF in aluminium
The ATEX control stations XAWF, made in aluminium, are equipped with our extensive range of robust and flexible control and signalling units HarmAtex. They combine the functions start and stop for motors, fans, pumps and more, and they can be provided with measuring instruments for current control, voltage or other physical quantities.
The functions can be predefined or determined according to the requirement of the application. Up to 52 control and signalling units can be installed on the XAWF control units.
These tough, high quality, flameproof / explosion proof control stations are designed and built in France for use in explosive atmospheres / ATEX hazardous areas around the world.
Ex marking
II 2 GD Ex e II, Ex emb II, Ex de IIC Ex demb IIC, Ex tD A21
Applications
Hazardous areas – ATEX
Product Downloads
- Material: aluminum
- Operating temperature: -20°C to +40°C
- IP rating: IP65/66
- Contact element:
- Ith = 10 A; Ui = 415 V
- AC
- Ue = 380 V; Ie = 1,9 A or
- Ue = 240 V; Ie = 3 A or
- Ue = 120 V; Ie = 6 A
- DC
- Ue = 250 V; Ie = 0,27 A or
- Ue = 125 V; Ie = 0,55 A or
- Ue = 24 V; Ie = 2,87 A
- Approvals: INERIS03ATEX0122
- Ex-code: II 2 GD Ex e II, Ex emb II, Ex de IIC Ex demb IIC, Ex tD A21
